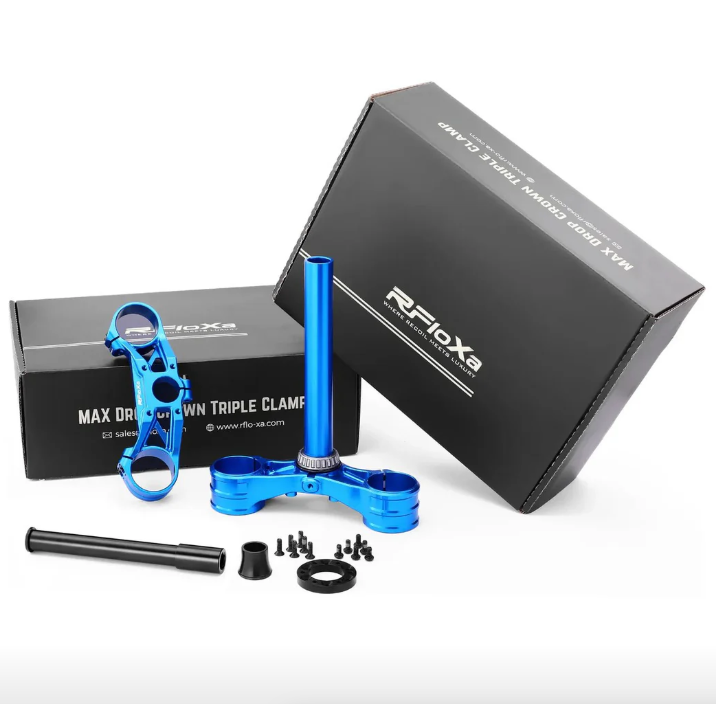

RFloXa Max Triple Clamp

About This Item

Note: This wider drop crown triple clamp kit is specifically designed based on data from the Talaria Sting MX3 / MX4, Sur-Ron Light Bee, and Eride Pro models. It may not fit properly with non-standard or modified front wheel hubs.

Product Overview
The RFLOXA MAX Drop Crown Triple Clamp Kit is a precision-engineered, widened clamp system designed to optimize performance for RFLOXA and FastAce forks—specifically the ALX13RC and AHX12RV models. Developed for demanding off-road use, this kit enhances steering geometry, increases tire clearance during compression, and offers superior impact resistance.

Key Features

Heavy-Duty Impact Resistance
Crafted from high-strength aluminum billets, the upper crown uses dual-row clamping screws, while the lower crown features triple-row clamping for added rigidity and durability under harsh riding conditions.

Lightweight Drop Crown Design
A hollowed upper crown design reduces weight while maintaining structural strength. The 17mm drop allows riders to lower fork tubes below stock position for more aggressive or custom riding ergonomics.

Increased Tire Clearance
With a 16mm wider stance than OEM triple clamps, the MAX Drop Crown accommodates tires up to 90mm wide, providing ample clearance during fork compression.

Precision Flange Spacer
Includes an AL7075 high-strength aluminum flange spacer with a unique 12-screw staggered pattern—six screws mount the spacer, and six mount the brake rotor—for even force distribution and improved braking efficiency. Compatible with 203mm rotors, direct mount 220mm calipers, and adaptable to 220mm / 240mm rotors using optional mounts.

Multiple Color Options

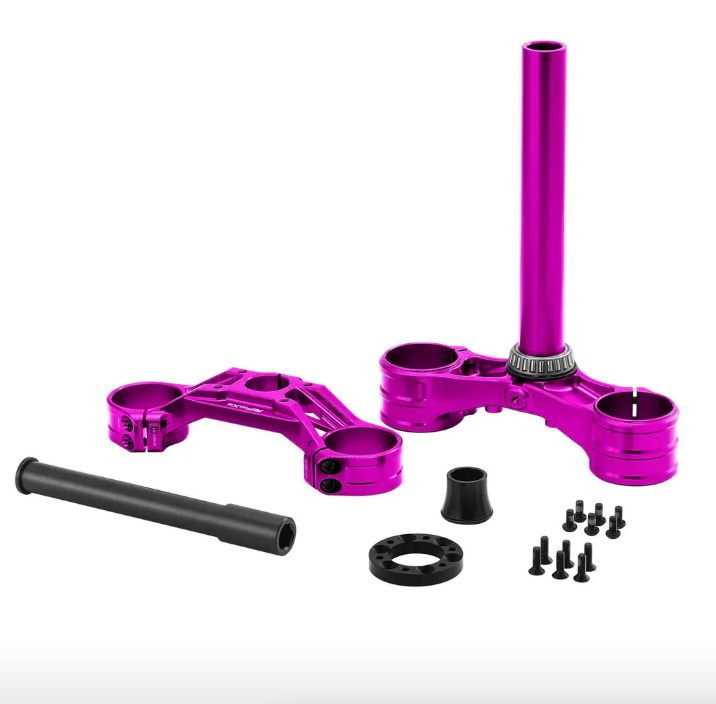

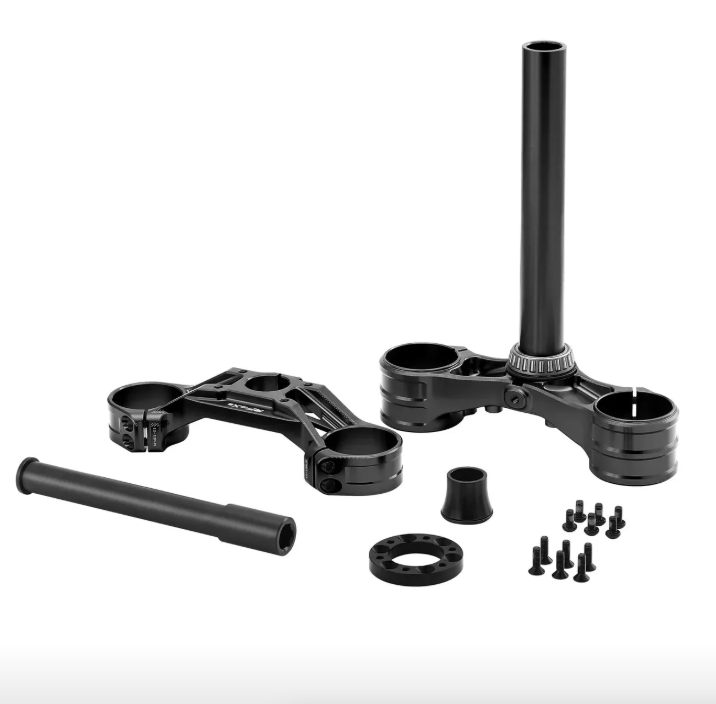

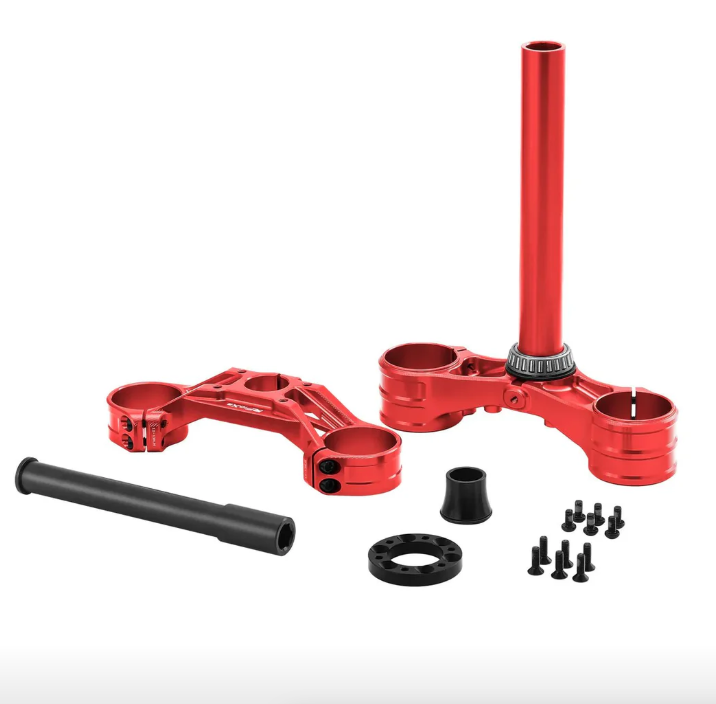

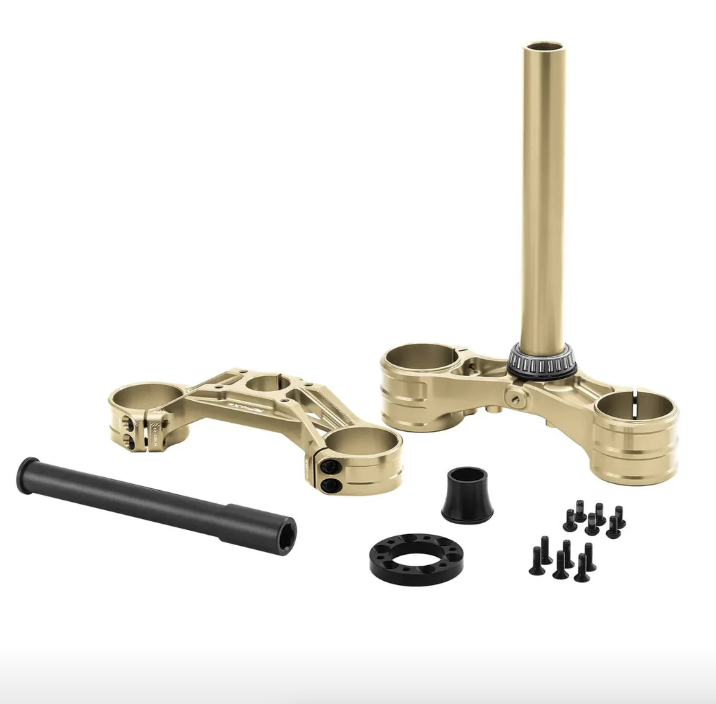

Available in bold anodized finishes: Black, Red, Blue, Gold, and Purple.

Compatibility

• Designed for: Talaria Sting MX3 / MX4 / MX5, Sur-Ron Light Bee, Eride Pro

• Fork Compatibility: RFLOXA FCG31RVP / FCG32RCP, FastAce AHX12RV / ALX13RC

• Not compatible with Volar or Rippin Moto braking systems (unless using a collet adapter)

Benefits at a Glance

• Enhanced impact resistance

• Increased braking power

• Improved fork geometry

• Wider tire clearance

• Flange spacer with rotor offset

• 17mm drop on upper crown

• 16mm wider than OEM

• Multiple color options for a custom look
